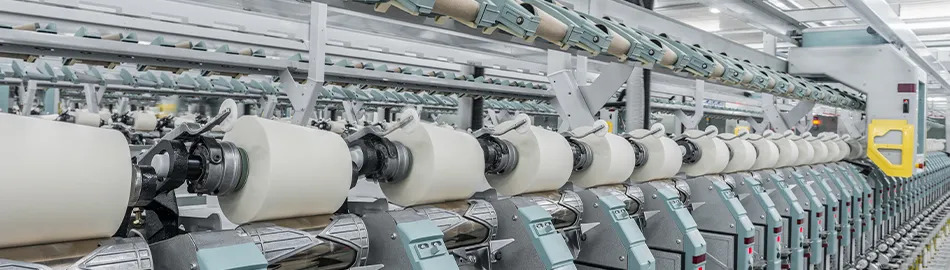

The production process of synthetic fibers requires precise speed control even at very high speeds and the reliability of a product that guarantees no vibrations, no tearing and an exact measurement of the surface temperature of the cylinders on which the yarn runs.

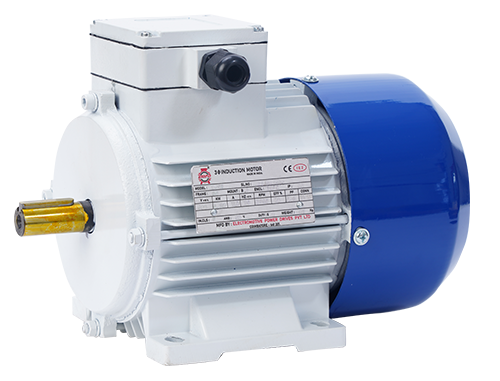

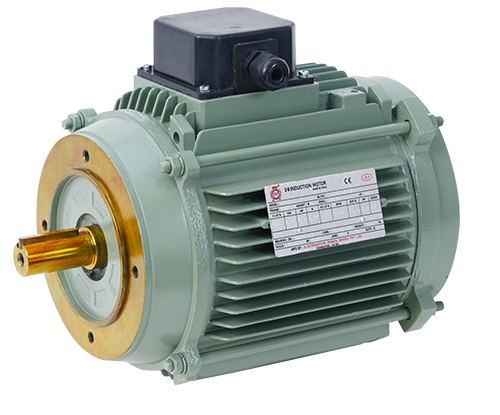

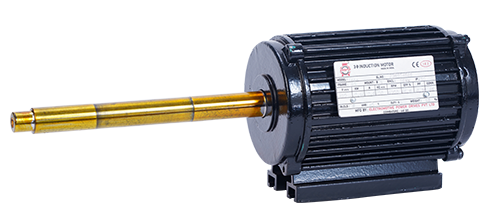

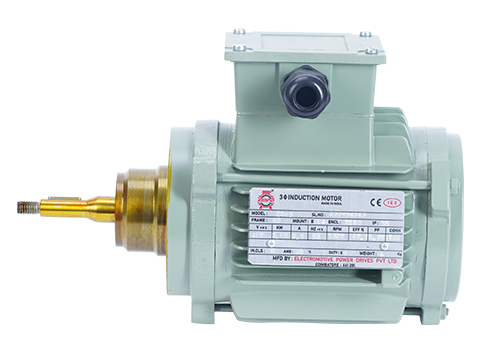

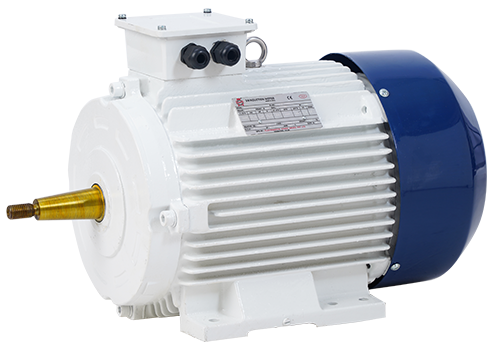

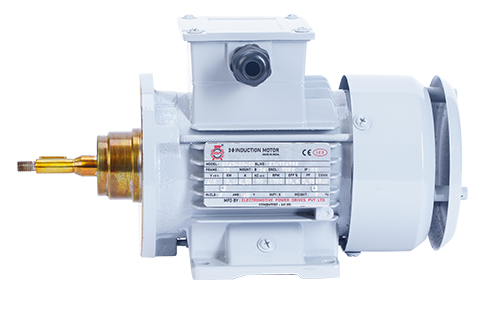

Our electric motors for the textile industry that we offer are exclusively designed for energy efficiency which leads to cost saving.
Applications
Thread winding
Ring Frame
Ring Frame
Ginning and spinning
Carding
Product Specifications
Motor type
Textile Motors
Frame Size
63 to 250M
Power
0.15 to 15 kW
Polarity
2, 4, 6 & 8
Mounting
B3, B5, B14 & combinations or special mounting
Voltage
415V ±10% or as required
Frequency
50Hz ±5% or as required
Protection
IP55 or superior on request
Ambient
40ºC
Construction
Full Aluminium or Alu body with CI enclosure or Full cast iron
