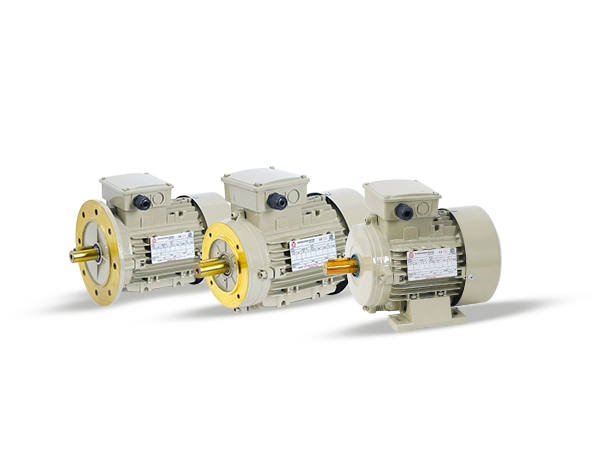

Premium Efficiency Standard Motor-IE3

These are general standard motors designed for the industrial applications. These motors are asynchronous,and are used for general applications conforming to IS & IEC standards. used in many industrial applications such as textile, gearbox and machine tool applications . These motors are premium than IE2 motors due to their improved efficiency which comes with slight additional cost . The additional cost can be recovered within short span of time if the motors are continuous duty.

Product Specifications

Motor type

IE3 Motor

Frame Size

63 to 250M

Power

0.18 to 55kw

Polarity

2, 4, 6 & 8

Mounting

B3, B5, B14 & combinations

Voltage

415V ±10% or as required

Frequency

50Hz ±5% or as required

Protection

IP55 or superior on request

Ambient

40ºC

Construction

Full Aluminium or Alu body with CI enclosure or Full cast iron

Enclosure

TEFC

Ins Class

Class F/ Class H insulation with temp rise limited to class B/Class F
