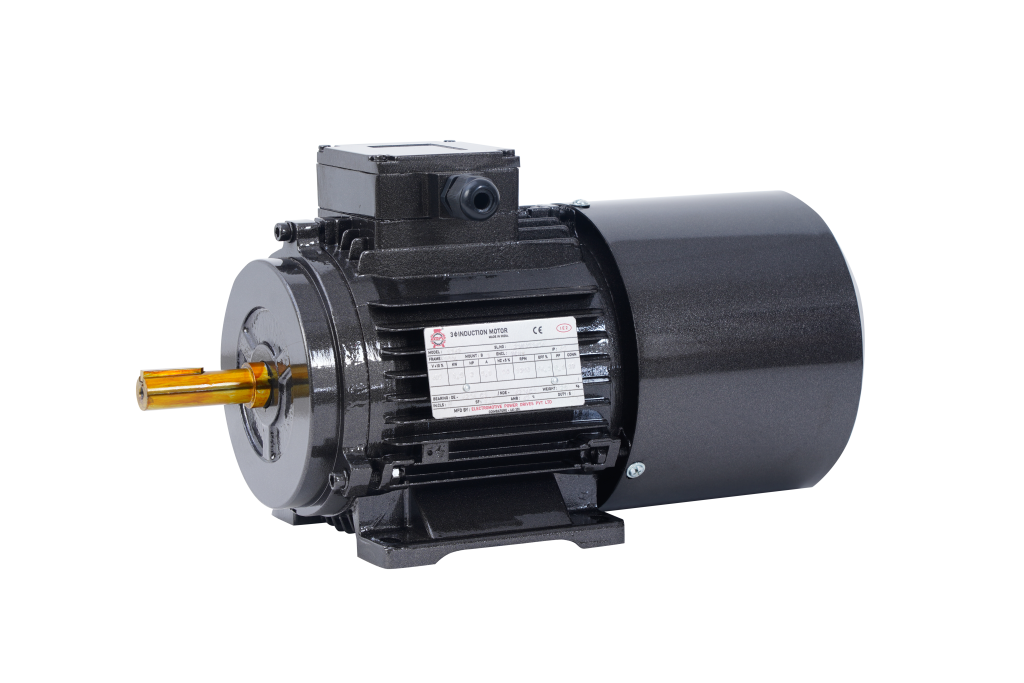

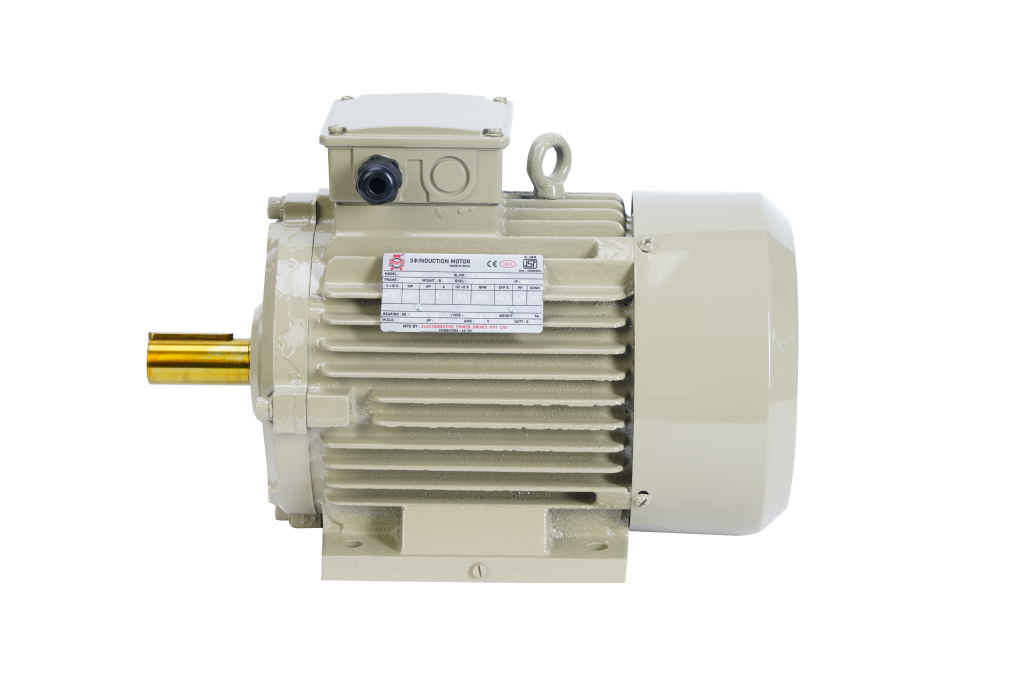

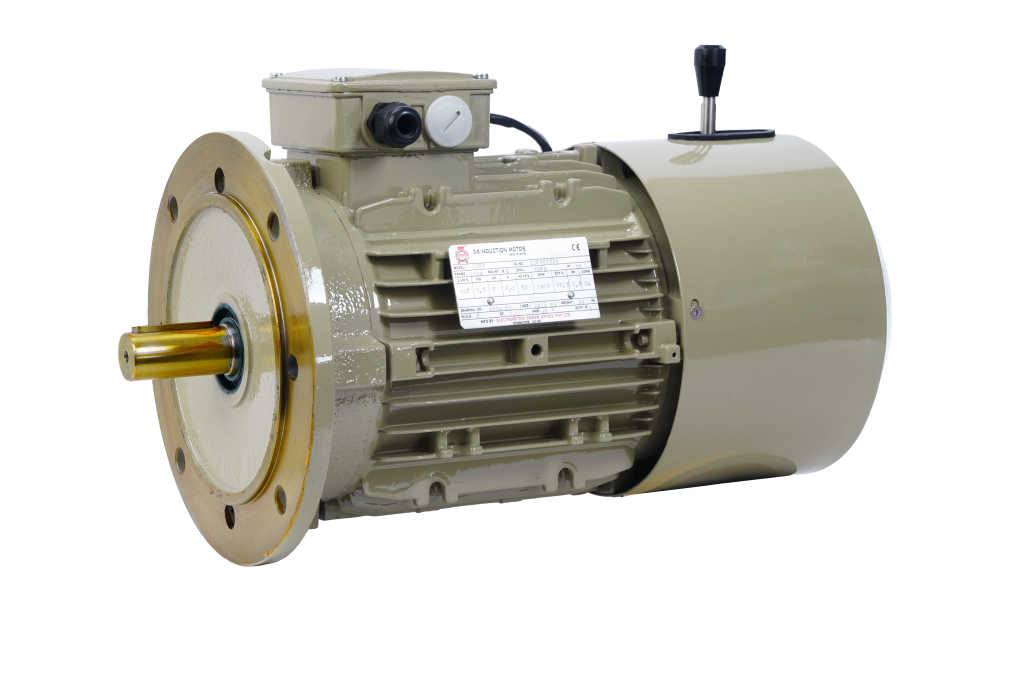

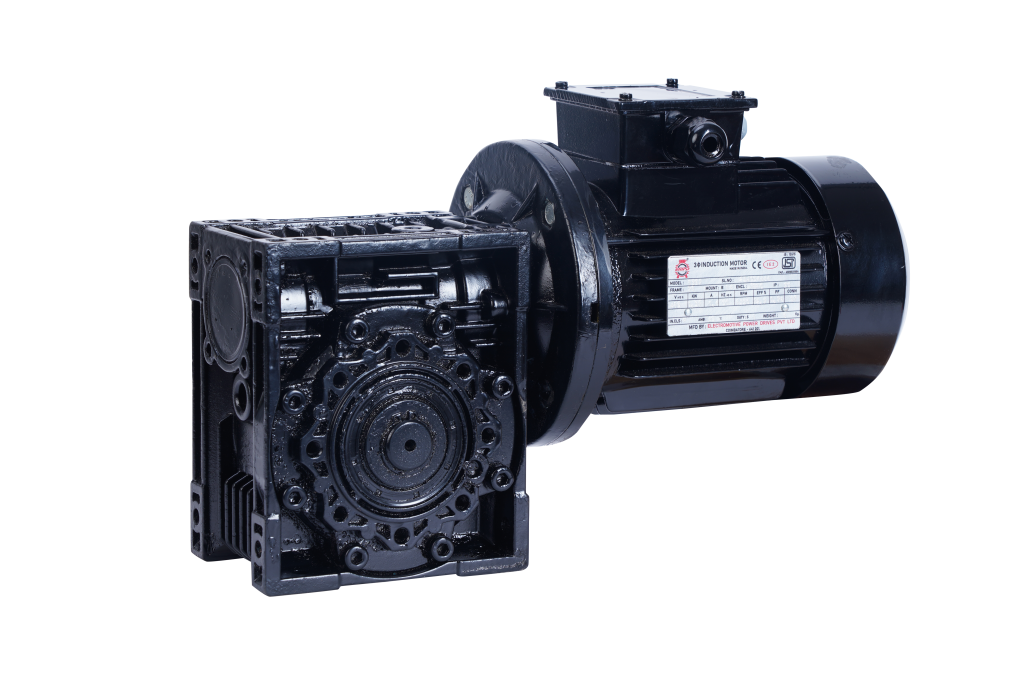

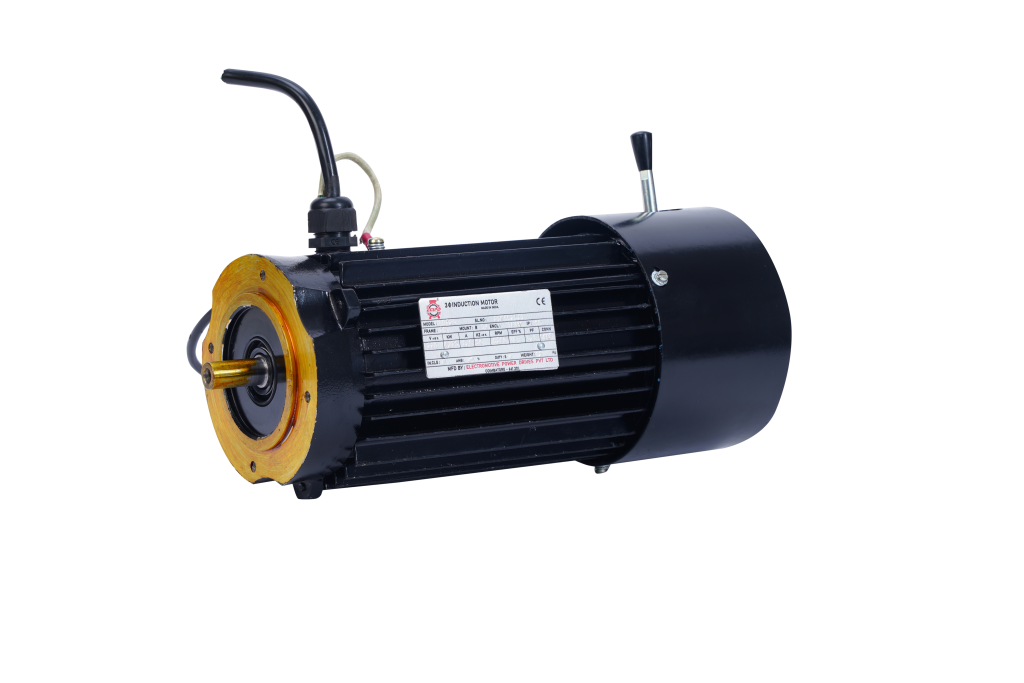

Brake Motors

These type of motors are used for Various Applications For Frequent Start Stop & Reversing Operations. Major applications include Hoist crane sectors, Machine tool sectors,Textile sectors,Wind sectors.

Product Specifications

Motor type

Brake Motors

Frame Size

63 to 160L

Power

0.18 to 55kw

Polarity

2, 4, 6 & 8

Mounting

B3, B5, B14 & combinations

Voltage

415V ±10% or as required

Frequency

50Hz ±5% or as required

Protection

IP55 or superior on request

Ambient

40ºC

Construction

Alu body with CI enclosure or Full cast iron

Enclosure

TEFC

Brake Voltage

190VDC or 400/690 VAC

Brake torque

Upto 160Nm

Ins Class

Class F/ Class H insulation with temp rise limited to class B/Class F
